Solar Panels

Techinical Specification

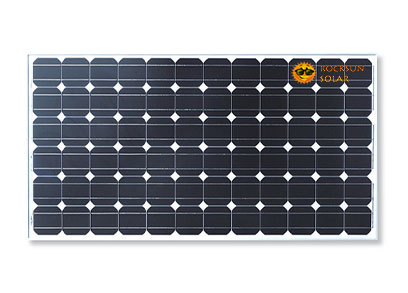

Solar panel 30W
Watt at Max. Power : 30 Wp
Open Circuit Voltage (Voc) : 21.0 V
Voltage at Max.Power Point (Vmpp) : 17.10 V
Current at Max.Power Point (Impp) : 1.76 A
Short Circuit Current (Isc) : 1.94 A
Module Efficiency : 12.98 %
Tolerance of Pmax : +/- 5 %



Solar panel 50W
Watt at Max. Power : 50 Wp
Open Circuit Voltage (Voc) : 21.0 V
Voltage at Max.Power Point (Vmpp) : 17.10 V
Current at Max.Power Point (Impp) : 2.93 A
Short Circuit Current (Isc) : 3.26 A
Module Efficiency : 14.12 %
Tolerance of Pmax : +/- 5 %

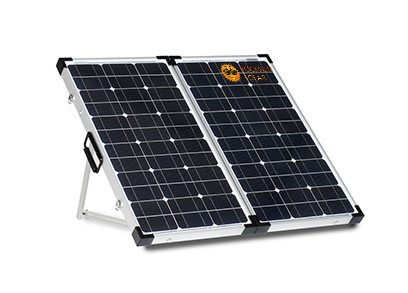

Solar panel 100W
Watt at Max. Power : 100 Wp
Open Circuit Voltage (Voc) : 21.0 V
Voltage at Max.Power Point (Vmpp) : 17.10 V
Current at Max.Power Point (Impp) : 5.85 A
Short Circuit Current (Isc) : 6.50 A
Module Efficiency : 15.06 %
Tolerance of Pmax : +/- 5 %



Solar panel 240W
Watt at Max. Power : 240 Wp
Open Circuit Voltage (Voc) : 36.90 V
Voltage at Max.Power Point (Vmpp) : 30.00 V
Current at Max.Power Point (Impp) : 8.00 A
Short Circuit Current (Isc) : 8.51 A
Module Efficiency : 14.87 %
Tolerance of Pmax : +/- 5 %
